Diesel Particulate Filter

How to remove with catalysts and filters particulate matter (PM), carbon monoxide (CO), and hydrocarbon (HC)
emitted from diesel engines.

A device that can regenerate filters regardless of operating conditions by implementing a combination of
natural and forced regeneration by removing

ACT-C

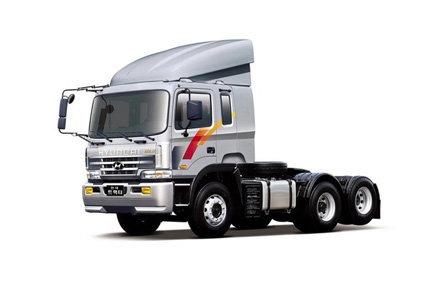

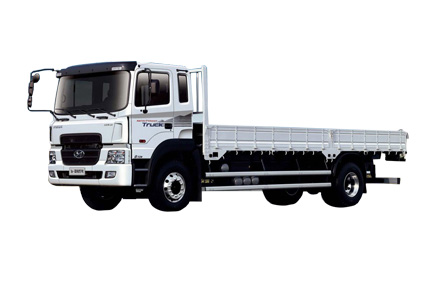

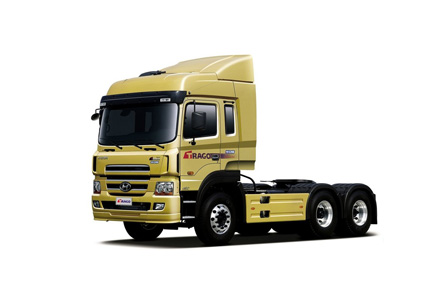

· Engine displacement & output : under 17,000cc & 240~460ps, diesel engine
· Smoke consentration : Load inspection (Lug-down 3 mode_under 60%, KD-147 mode_under 50%) No-load inspection_under 35%

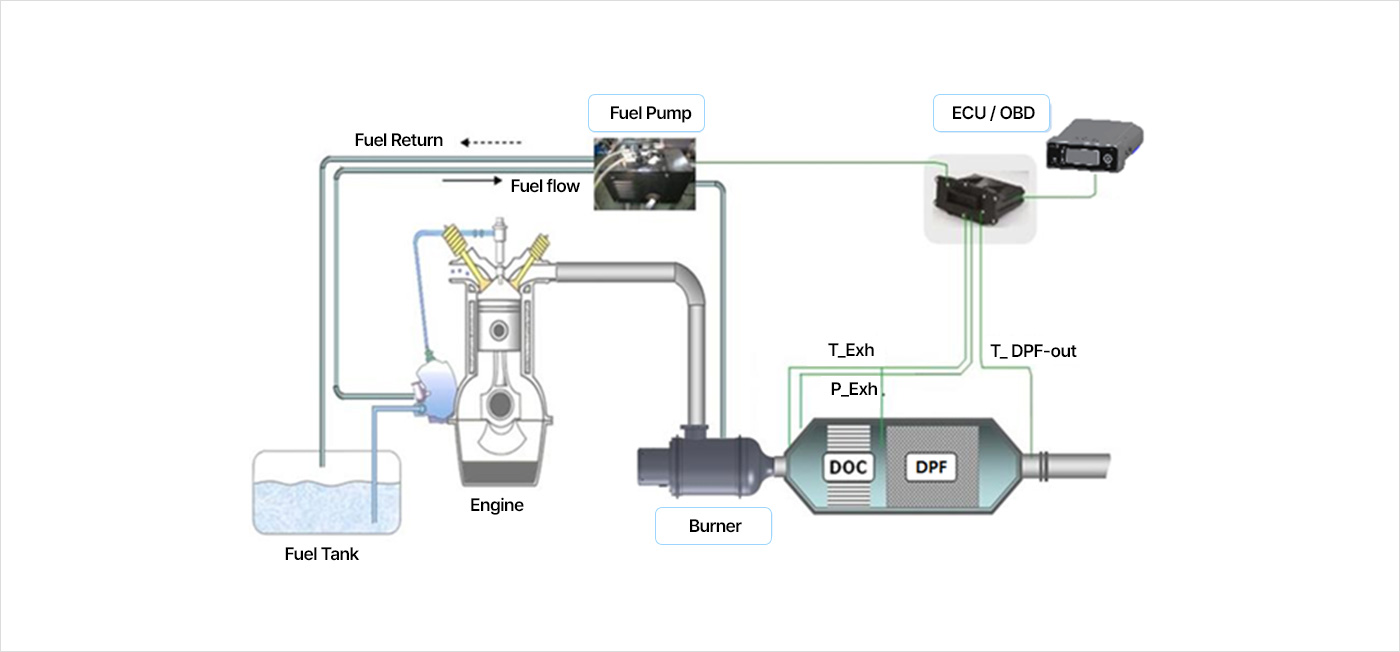

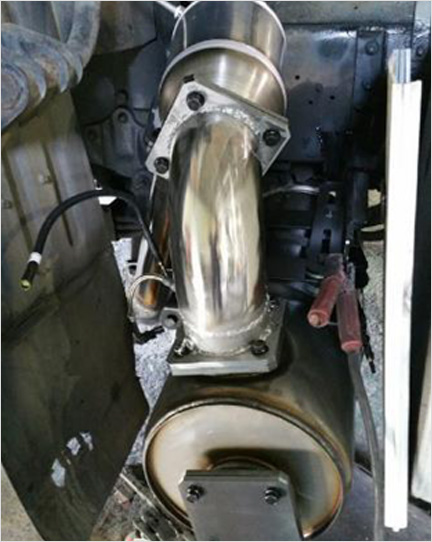

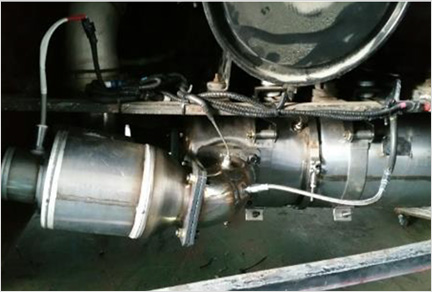

· Addition of ECU, fuel injection pump, and nozzle to passive regeneration DPF.
· PM reduction rate above 80%, diesel injection & burner method, low speed vehicles can also be equipped.

Model	Size	Displacement/Weight	PM Reduction
ACT-C	Ø317mm x L1,450mm	24.4L / 58.5kg	95.20%

Model

Size

Displacement/Weight

PM Reduction

ACT-C

Ø317mm x L1,450mm

24.4L / 58.5kg

95.20%
