Diesel Particulate Filter

How to remove with catalysts and filters particulate matter (PM), carbon monoxide (CO), and hydrocarbon (HC)
emitted from diesel engines.

A device that can regenerate filters regardless of operating conditions by implementing a combination of
natural and forced regeneration by removing

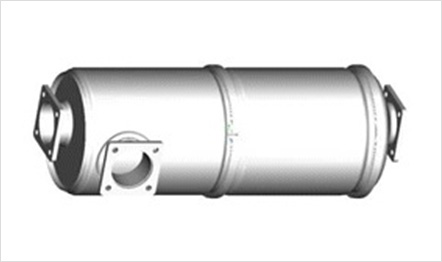

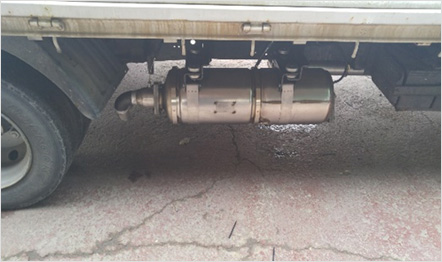

ACT-B

· Engine displacement & output : under 3,000~11,000cc & 235ps, diesel engine
· Smoke consentration : Load inspection (Lug-down 3 mode_under 60%, KD-147 mode_under 50%) No-load inspection_under 35%

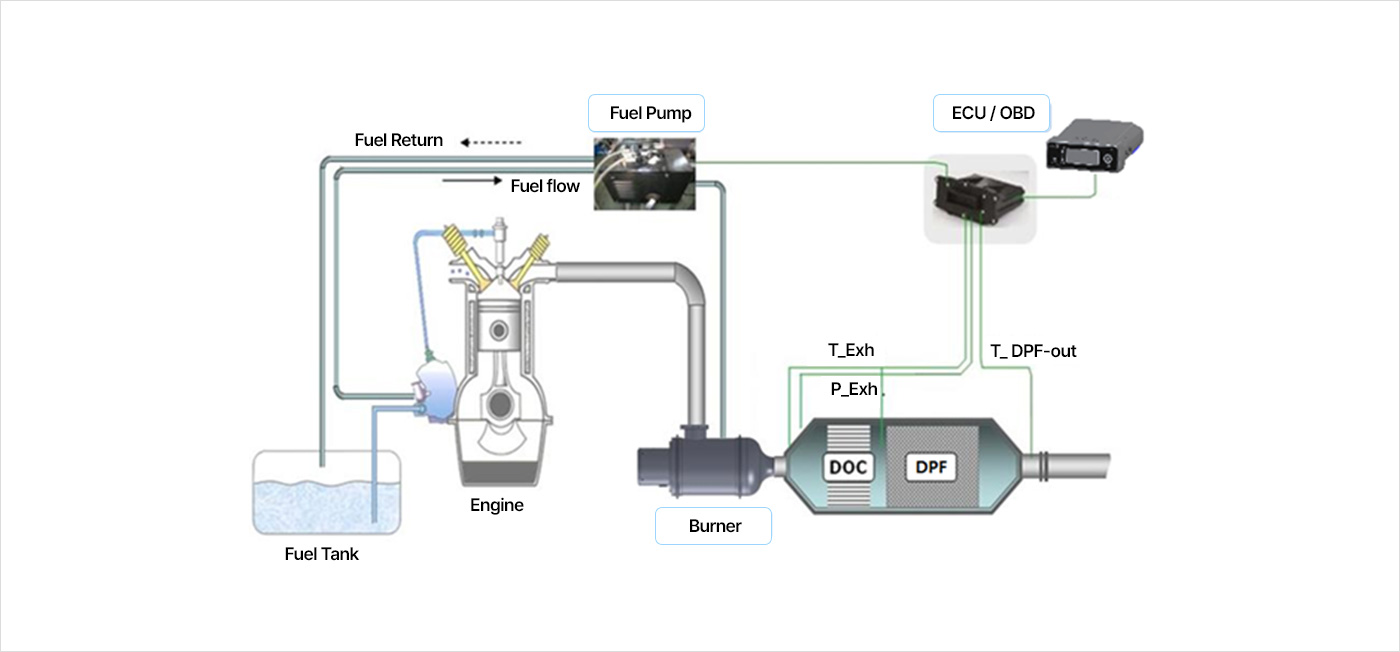

· Addition of ECU, fuel injection pump, and nozzle to passive regeneration DPF.

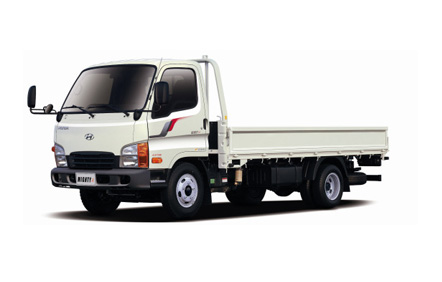

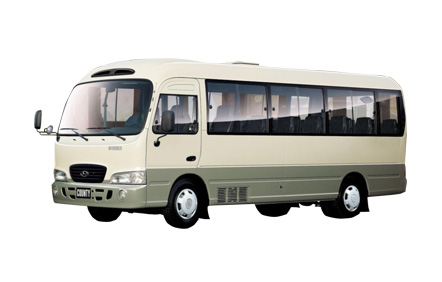

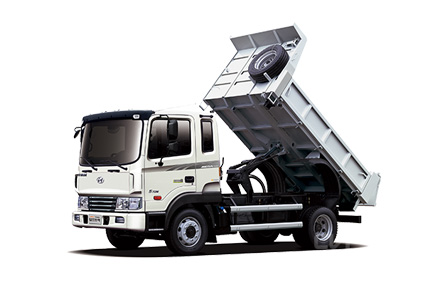

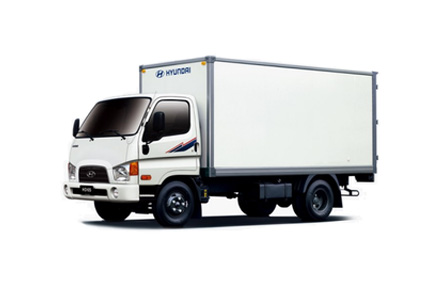

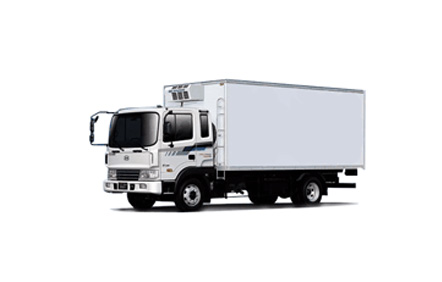

· PM reduction rate above 80%, diesel injection & burner method, Low speed vehicles can also be equipped.

Model	Size	Displacement/Weight	PM Reduction
ACT-B	Ø247mm x L765mm	17.2L / 35kg	91.60%

Model

Size

Displacement/Weight

PM Reduction

ACT-B

Ø247mm x L765mm

17.2L / 35kg

91.60%
