Products

Diesel Particulate Filter

How to remove with catalysts and filters particulate matter (PM), carbon monoxide (CO), and hydrocarbon (HC)
emitted from diesel engines.

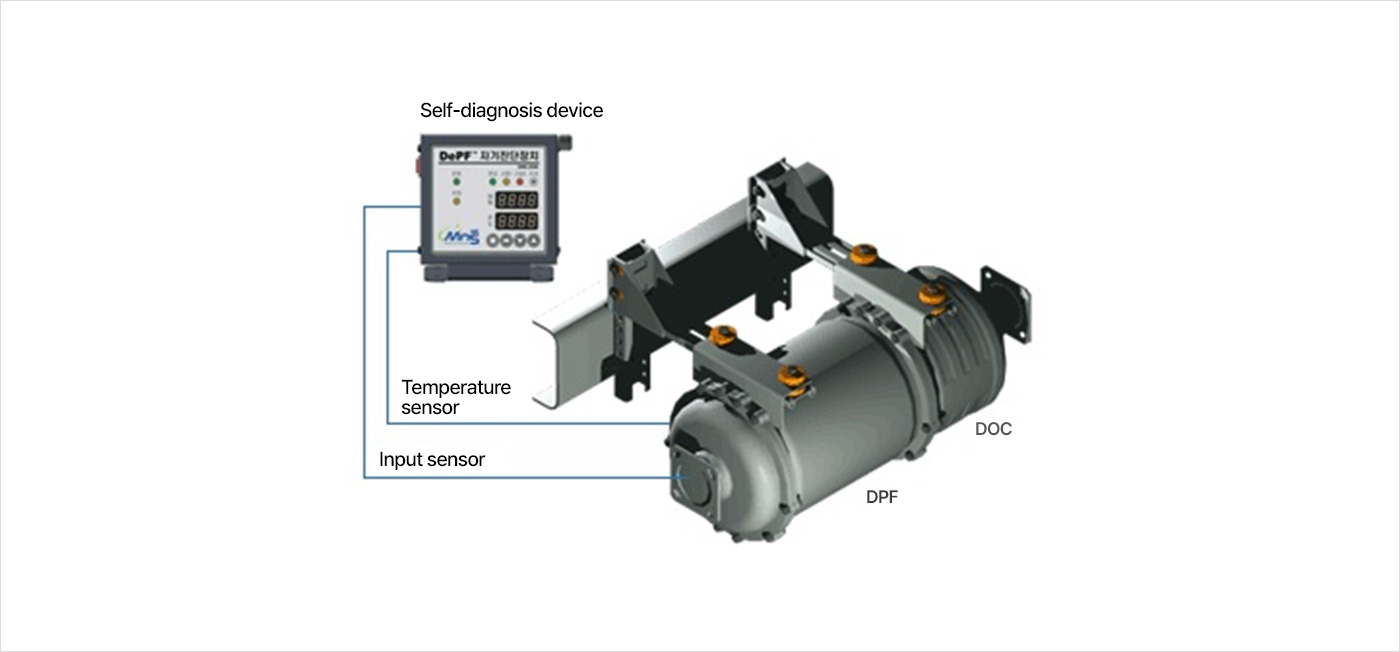

A device that can regenerate filters regardless of operating conditions by implementing a combination of
natural and forced regeneration by removing

H2

Application

  • · Engine displacement & output : under 6,000~11,000cc & 240ps, diesel engine
  • · Smoke consentration : Load inspection (Lug-down 3 mode_under 50%, KD-147 mode_under 45%) No-load inspection_under 35%

Feature

  • · This device filters the PM, the major cause of micro dust, from the exhaust gas of diesel engine vehicles and removes them by natural oxidation using the heat of exhaust gas.
  • · PM reduction rate above 80%, Catalyst type DPF, High speed vehicles only possible.

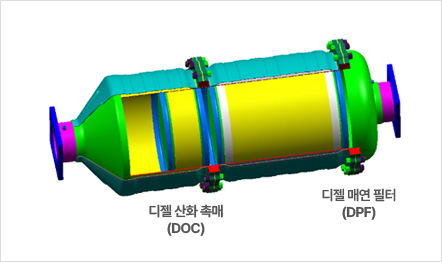

Product configuration and specifications

Model Size Displacement/Weight PM Reduction
DPX-H2 Ø340mm x L870mm 21.3L / 46kg 96.30%

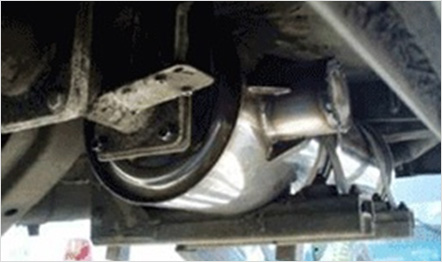

Product & Installed picture

  • MFF-B

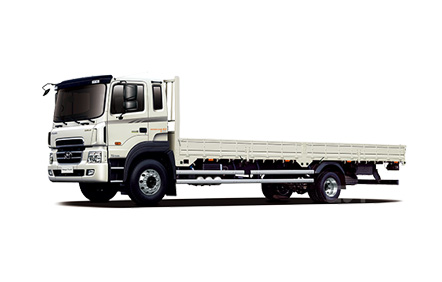

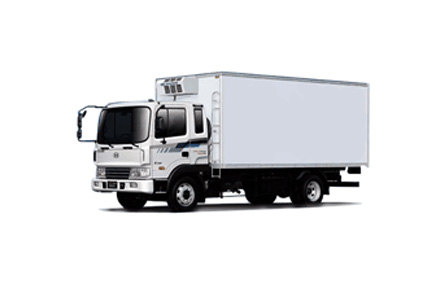

  • HYUNDAI 5TON TRUCK
